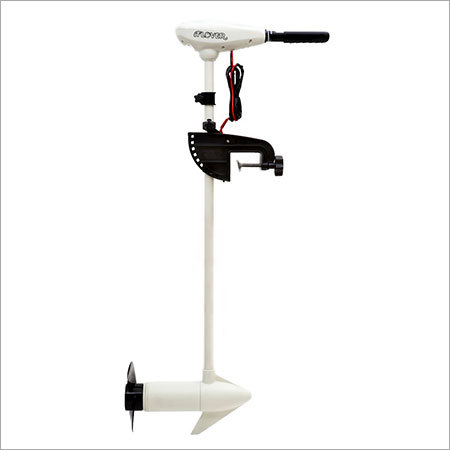

Electric OBM

Electric OBM
Electric OBM
Product Code : 02
Product Description

We are highly noticed name in the industry, engaged in offering supreme quality Electric OBM that is extensively used in boats. Our engineers manufacture this product in accordance with the set industry standards using premium quality raw material. This product is tested on defined parameters to ensure its flawlessness at clients' end. Available in different specifications to meet the diverse requirements of our esteemed clients. This Electric OBM can be availed at market-competent prices.

Features:

  • Rugged design

  • High performance

  • Durability

  • Easy installation

High Sound Quality with remarkable capacity

Enhanced sound quality improves through the adoption of low noise design and technical formulation in operation reaching below 40 dB. Motors function smoothly and efficiently at the level of the thrust desired, based on Flover extensive expertise in motor industry for many years.

Telescopic Handle and Battery gauge

The set is equipped with telescopic handle enabling the control bar to extent effectively. The LED armed on the control box display the remaining battery charge connected. There are more ideas and innovation coming up to address the ever changing needs of contemporary users and serve the market in a good way.

Great Mobility and Durability with full manoeuvre

The set weighing 7kg exploit a newly invented aluminum shaft of which the thickness i s not less than 2.7 mm. The housing and shaft are specially UV coated with high precision. The motor offers a choice of five forward and three reverse speeds set up turning its control handle.

Ergonomic Design and Stylish Touch

The set is ergonomically designed and armed with well extruded bracket and control unit. With telescoping handles installed boat drivers are able to impel leisurely. The tilt levers equipped enables to adjust the set by ten different angles.

Compliance Relevant with Two Year Warranty

The item produced by Flover abide the directive from CE and requirements from ISO. The foundation established from its collective expertise on motors allows to present two year warranty for the whole product lines.

Technical Specifications

Features

FLOVER 33F

FLOVER 33

FLOVER 35

FLOVER 40

FLOVER 45

FLOVER 50

FLOVER 55

Thrust (lbs/kgs)

33 / 15

33 / 15

35 / 15.9

40 / 18.1

45 / 20.4

50 / 22.7

55 / 24.9

Current Drawn (A)

33~33

33~33

32~35

36~40

41~45

45~50

50~55

Voltage (V)

12

12

12

12

12

12

12

Output (HP)

0.45

0.45

0.5

0.6

0.7

0.8

0.9

Shaft Length (mm)

750

750

750

850 (1000)

850 (1000)

850 (1000)

850 (1000)

Propeller diameter (inch)

9

9

9

11

11

11

11

Propeller pitch (inch)

4

4

4

4

4

4

4

Net weight (lbs/kgs)

15 / 6.8

15 / 6.8

16 / 6/8

16.5 / 7.8

19 / 8.6

19.4 / 8.8

19.8 / 9

Battery gauge

No

Optional

Optional

Optional

Optional

Optional

Optional

Selection

F, T, TG

F, T, TG

T, TG

T, TG

T, TG, TGS

T, TG

T, TG, TGS

F: Fixed Handle Tiller, T: Telescopic Tiller, G: Battery Gauge, S: Salt water
TG: T + G, TGS: T + G + S
